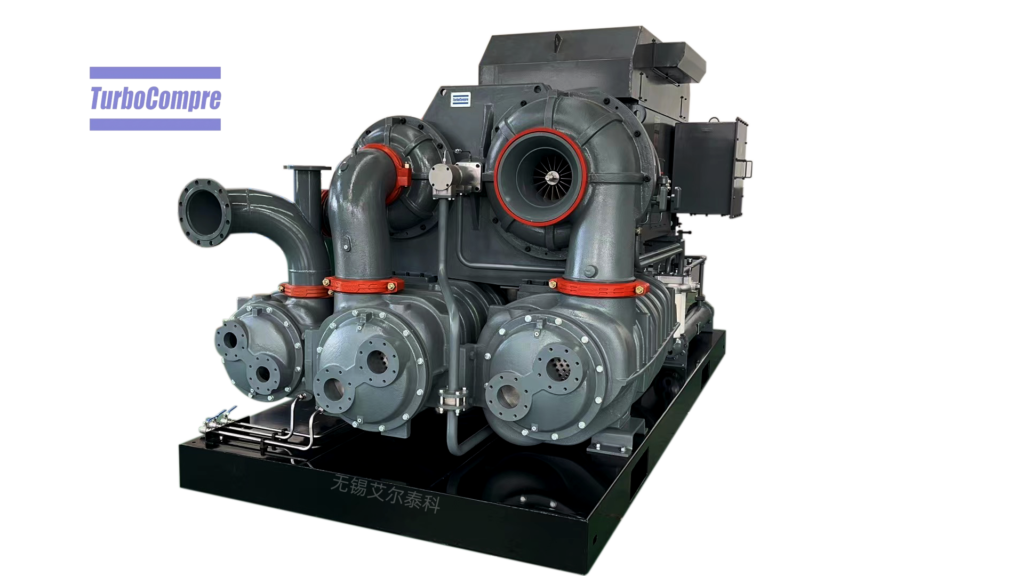

Multistage Centrifugal Compressor: Working Principle and Advantages

How Does a Multistage Centrifugal Compressor Work?

The working principle is based on converting mechanical energy into pressure energy through a continuous flow process.

1.Gas Inlet

Gas enters the compressor through the inlet system and flows into the first impeller.

Smooth and turbulence-free intake reduces airflow impact loss, enables gas to flow smoothly to the inlet of the first-stage impeller and lays a stable foundation for subsequent multi-stage compression. Meanwhile, it prevents impurities from abrading impeller blades and extends the service life of core impeller components.

2.Compression Stages

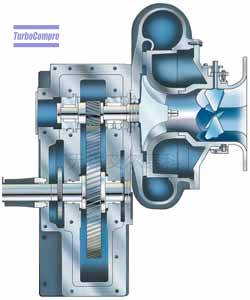

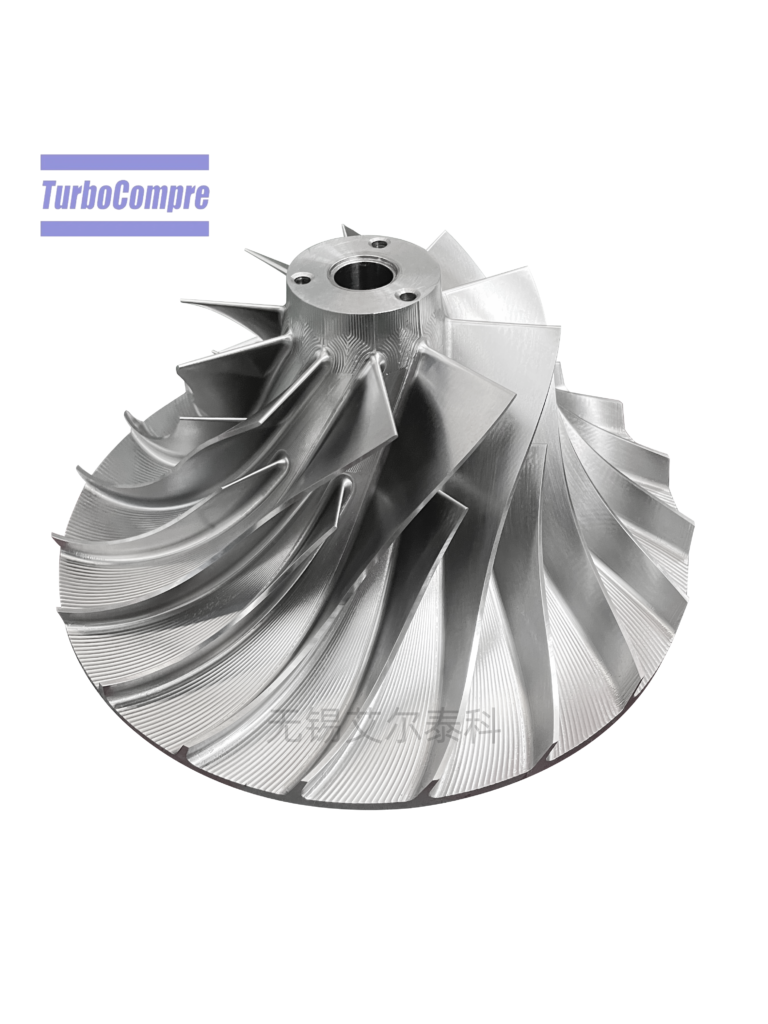

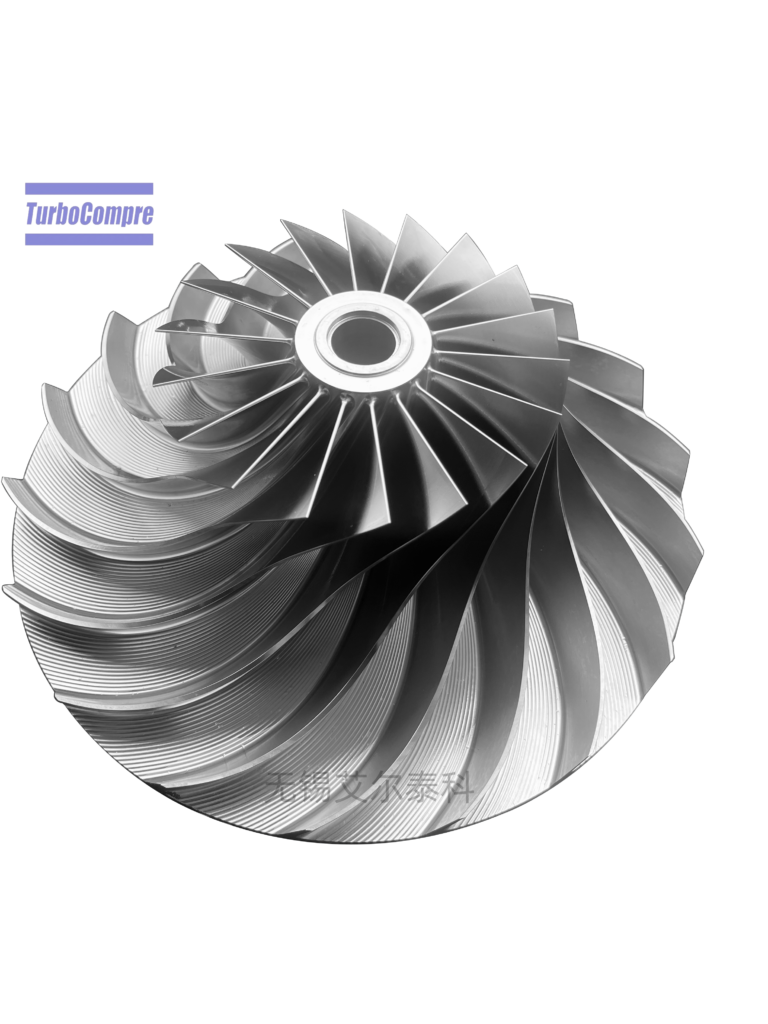

Each rotating impeller accelerates the gas outward by centrifugal force.

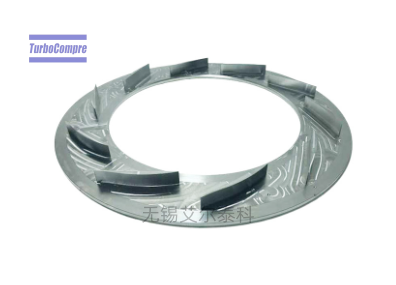

The diffuser then converts the gas velocity into pressure. The compressed gas passes through a return channel into the next stage, where the process is repeated until the required pressure is reached.

3.Final Discharge

After reaching the set pressure, gas converges inside the exhaust chamber. Optimized casing channels stabilize gas velocity and eliminate pipeline vibration from turbulent airflow. High-pressure gas flows out via dedicated exhaust ports that fit most industrial pipelines, connecting seamlessly to storage tanks, piping and gas equipment.

Thanks to multi-stage pressure stabilization, outlet pressure barely fluctuates with steady air supply. It reliably meets continuous gas needs for chemical fiber, pharmaceutical, precision manufacturing and metallurgy industries, supporting stable, nonstop downstream production.

Advantages of a Multistage Centrifugal Compressor

1.High Pressure Output Capacity

This complete centrifugal turbo compressor adopts a staged pressurization design. Gas undergoes progressive compression, temperature rise and interstage cooling to boost exhaust pressure steadily without sharp pressure spikes or drops.

The unit runs at a stable rotating speed with minimal air pressure fluctuation. It accommodates constant high-pressure working conditions in chemical, metallurgical and air separation industries, and copes with variable scenarios with slight production load changes.

2. Excellent Energy Efficiency

By distributing compression across several stages, aerodynamic losses are reduced, resulting in lower energy consumption and lower operating costs.

Airflow is split across multiple impellers to share compression workload, avoiding massive energy loss caused by intense single-stage compression. Aero-thermal losses are effectively contained.

3. Continuous Operation

Unlike reciprocating compressors that suffer severe airflow pulsation, centrifugal compressors deliver continuous, steady airflow, catering to production processes with strict requirements for gas source stability.

Reciprocating units generate compressed gas via repeated piston extrusion, creating regular airflow pulsations. Such fluctuations tend to trigger pipeline vibration and unstable instrument readings, which may lead to defective products in precision machining, pharmaceutical production, optical fiber fabrication and electronic manufacturing.

4. High Reliability

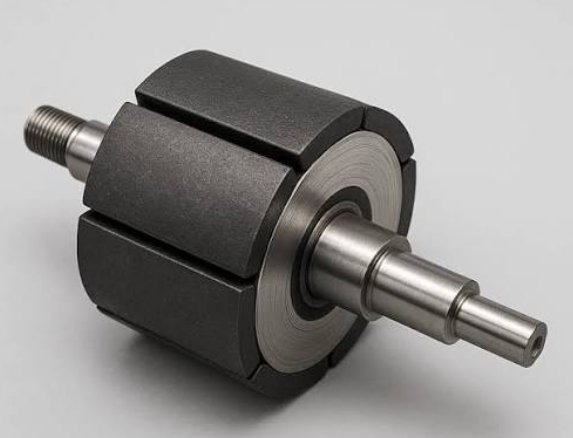

With precisely dynamically balanced rotors and advanced aerodynamic structure, the centrifugal compressor has fewer friction parts, bringing fewer failures, longer service life and easier routine maintenance.

The factory-calibrated rotor runs smoothly with tiny vibration at high speed, making bearings and seals wear slowly. Compared with reciprocating compressors, it has far fewer consumable parts like pistons and connecting rods.
