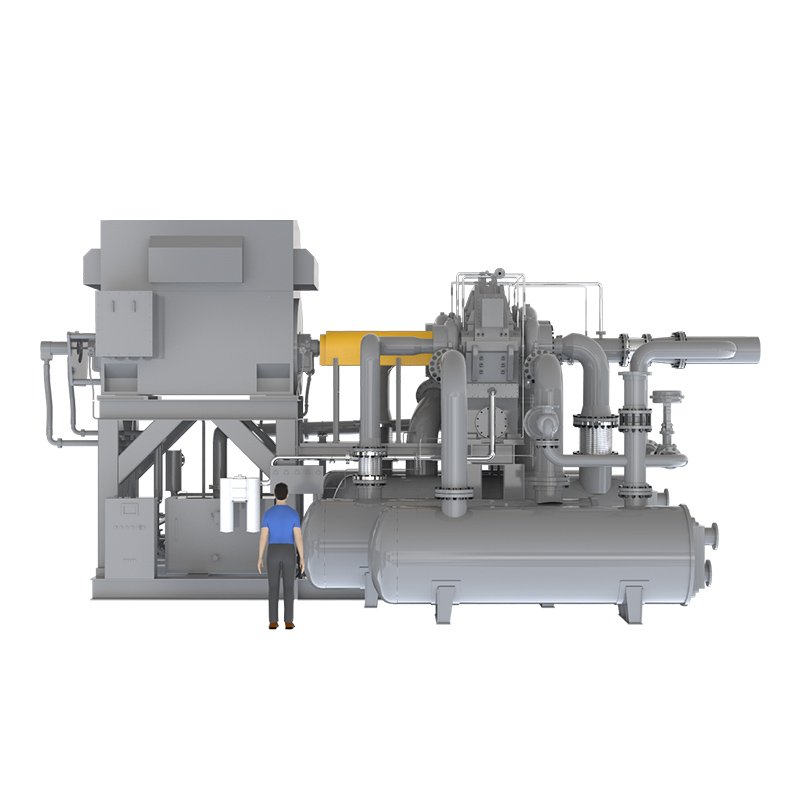

Process gas compressor
High efficiency, high reliability, low operating cost, and easy control
Innovation in core technologies
TCS Series
一、Features
1、High-flow and high-pressure standardized design, short delivery time, overall modular skid-mounted design, easy installation, and single-layer layout with less civil engineering investment.
2、The main unit adopts an open impeller + closed impeller = high-efficiency combination. The main motor drives the main oil pump and the full-flow auxiliary oil pump, ensuring reliable operation.
3、Floating carbon ring seal + sealing gas (optional), with low leakage.
4、It is equipped with a PLC+10 “control system.
5、Stainless steel dual oil filters can be freely switched.
6、Intelligent IGV guide vanes + full-flow double vent valve control.
二、Application field
1、Oil and Gas: Natural gas transportation, hydrogenation treatment in refineries.
2、Chemical engineering and pharmaceuticals: Ammonia synthesis, urea production, gas separation (such as air separation equipment).
3、Energy sector: Gas turbines, fuel cell gas supply systems.
4、Refrigeration and air conditioning: Large centrifugal water chillers
三、Advantage
1、Large flow rate and stable operation.
2、Low maintenance cost and long service life.
3、Oil-free design is optional
HIGH PERFORMANCE
The TCS range of process gas compressors is the most robust and re-liable compressors built for indus-try. Their core technology lies in an advanced open impeller + closed impeller design that provides ex-cellent gas dynamicsover a wide range of gas volumes.
Highly efficient basic and throt-tling modes of operation
The highly efficient design of the impeller is the heart of the compressor and allows maximum pressure rise with minimum energy consump-tion.The opening of the inlet guide vane valve can be adjusted to minimize energy consumption when the gas demand is low.
Energy conservation
The gas compression process is made more efficient through precise con-trol of the airflow. Efficient in-terstage aerodynamic components and cooler design minimize power con-sumption.
Corrosion resistance
High-strength 17-4PH, 15-5PH stain-less steel and titanium alloy im-pellers resist corrosion and ero-sion from atmospheric pollutants and water vapor filtered through the intake filter.
SPLIT CASE HORIZONTAL SPLIT STRUCTURE
LOW NOISE GEAR SETS
Precision-crafted core components lay the foundation for machine reliability
Pasteurized alloy five-piece tilting tile bearing
- Autoretic adjustment of the distarce betveen the tiles and the shaft for the protection of the rotating shaft.
- High load carrying capacity. high stability, good vibration damping.
- Horizontally split bearings for easy inspection.
- Optional bearing temperature.
Diffuser design forgreater regulation
- Impeller gas dynamics for higher adiabatic efficiency.
- Constant efficiency design for reduced pressure loss and improved efficiency.
- Helps maintain adjustable diffuser when flow is reduced.
- Available as an optional single-stage HA unit.
Shrink fit labyrinth seal minimizes air leakage
- The 17-4 PH/DIN 1.4540 stainless steel labyrinth rotates on the impeller shaft with a simple fitagainst a fixed aluminum ring.
- Air leakage along the shaft is minimized and theshaftis protected from the unlikely event of run-ning out of balance.
Drive motors
- Various motors with different voltages andenergy consumption are available.
- Can be freely selected according to customerneeds.
Advanced control system for optimal performance and safety
- (LCD) Large LCD color screen
- Various parameters of the equipment operation dataat a glance very easy to confirm the operatingstatus of the equipment, the problem can be quick-ly dealt with when it occurs simple on / off buttondesign, easier to operate.
- Automatic compounding and constant pressure regulation control
- Through the air release valve and inlet deflector automatic control, to maintain a stable exhaust pressure, the equipment is always efficient opera-tion of more than 35% of the flow rate adjustment to meet the requirements of the user to use theflow rate changes.
Parameter configuration
8000-30000 standard square air separation supporting main air compressor
A wide range of models and parameters are available to provide customers with pressure and gas capacity.

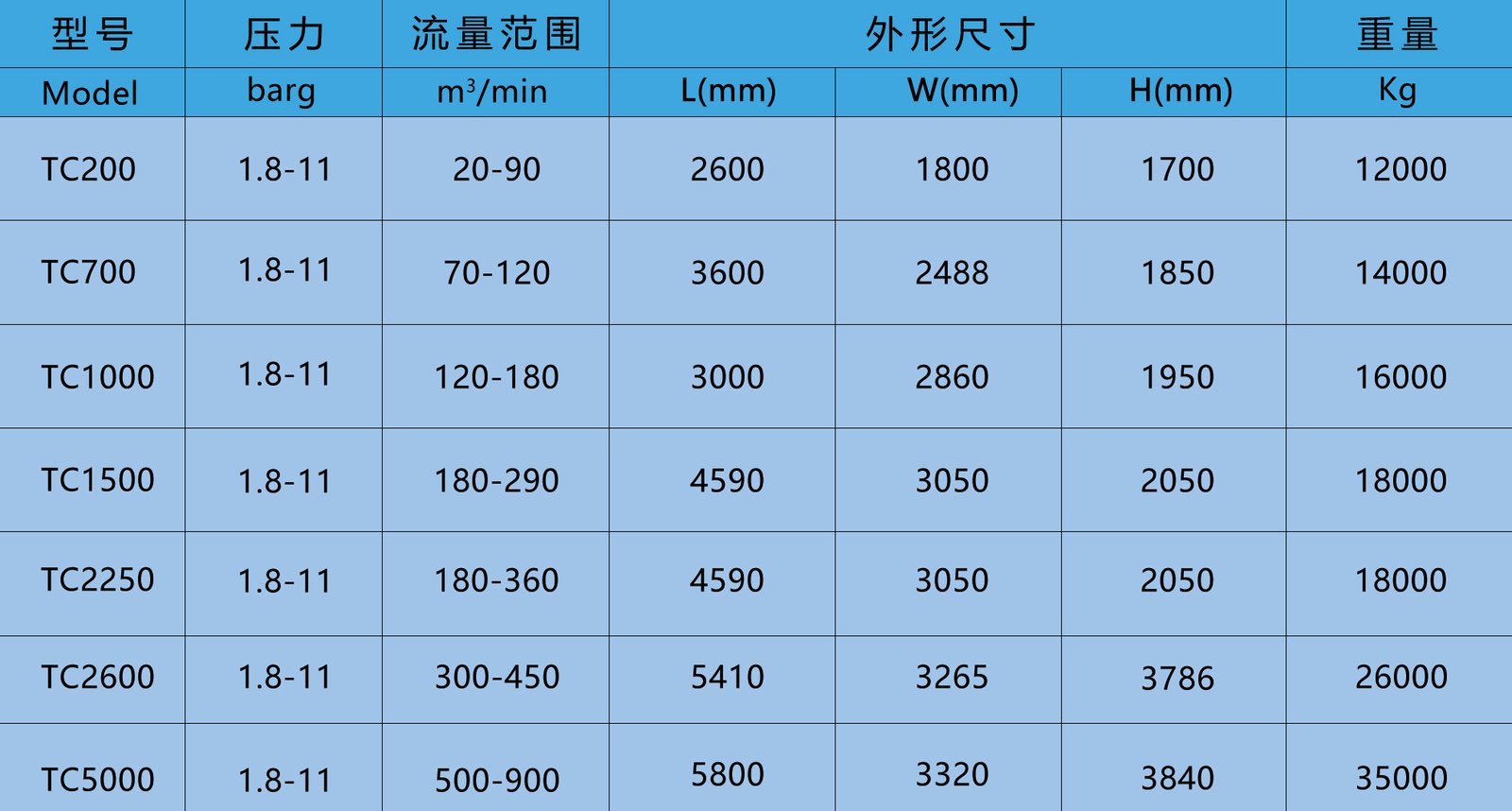

Technical parameters of Altec compressor

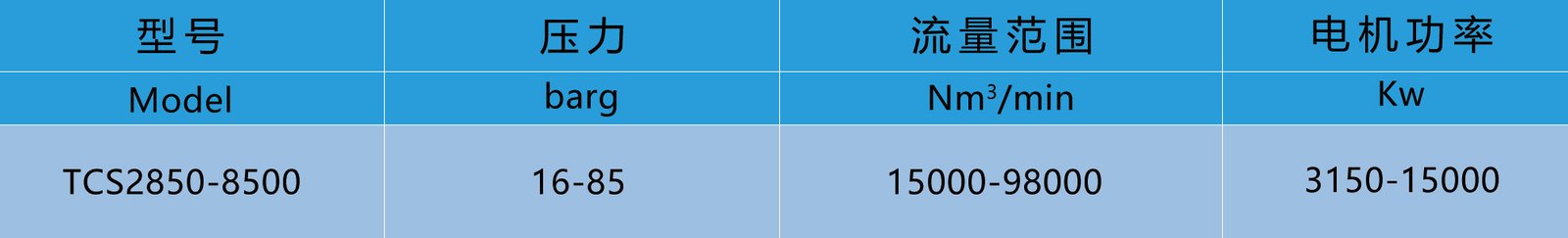

Technical Parameters Table Nitrogen air centrifugal circulation booster
Note: For other parameters and models, please consult our company’s sales staff
The final interpretation right belongs to Wuxi Airtech Compressor Co., Ltd.
